【Scope of application】

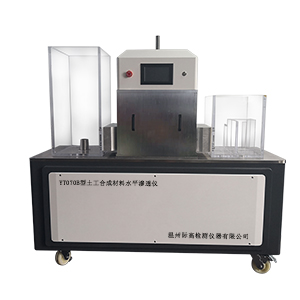

It is used to measure the in-plane water flow of geotextiles and related products under different normal pressures and standard hydraulic gradients.

【Test Principle】

The principle is to change the normal pressure under the prescribed hydraulic gradient and contact material, and measure the in-plane water flow of geotextiles and related products.

【Standards compliant】

GB/T 17633-2019 Geotextile and related products Measurement of water flow in the plane

JTGE50-2006, SL235-2012

【technical parameter】

1. Display: 7.0-inch true color touch screen, Chinese menu operation

2. Hydraulic gradient measurement: 0-300mm, laser measurement, digital feedback

3. Specimen clamping specifications: thickness: 50mm, length 300mm

4. Thermometer range: 0-50℃±0.2℃

5. Time controller: 0-999.9 seconds can be set arbitrarily, the control precision is 0.1S

6. Timing mode: seconds, minutes, hours (optional)

7. Measuring accuracy of water head: 0.2 mm

8. Normal pressure loading range: 0～600kPa, servo drive, continuously adjustable

9. Normal pressure accuracy: ±1%

10. Plane water flow calculation: program calculation, printout

11. Power supply voltage: 220V (50HZ±1%)

12. Size: 1600*600*1750

13. Weight: 260 kg
