【Scope of application】

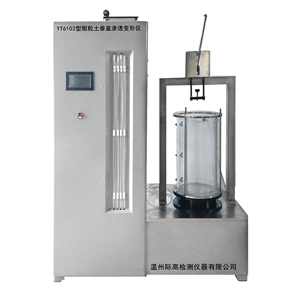

The YT6102 coarse-grained soil vertical seepage deformation instrument complies with the SL237-056-1999 hydropower and water conservancy engineering coarse-grained soil test regulations to determine the permeability coefficient of the sample and the critical slope of the gradual loss of fine particles with the seepage when the coarse-grained soil passes through the seepage. The failure slope when the soil is floating as a whole. It is suitable for coarse-grained soils and is used to determine the permeability coefficient, dry density, porosity, seepage gradient, seepage flow velocity and other parameters of coarse-grained soils.

【Standards compliant】

SL237-056-1999

【technical parameter】

1．Control system: 7-inch color touch screen

2．Test tube specification: ф300㎜*600mm

3．Water head control height: 3000mm±0.1mm

4．Thermometer range: 0-100℃±0.1℃

5．Test tube height: 600mm

6．Water head lifting device: a set of electric control

7．Water supply tank specifications: ф510㎜, height 500㎜

8．Measuring cylinder: 1000ML

9．Measuring cylinder: 100ML

10．Weight: 450KG
