【Scope of application】

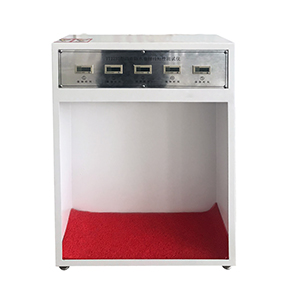

This equipment is mainly used for self-adhesive waterproof materials, and can also be used for adhesive labels, adhesive tapes, stationery tapes, adhesive products, and other adhesive products. The equipment is equipped with 5 test stations in total.

【Standards compliant】

GB/T18173.1-2012 "Polymer Waterproof Material Part 1: Sheet"

GB/T 4851-2014 Method A "Test Method for Adhesive Tape Stickiness"

【technical parameter】

1．Standard pressure roller: 2000g±50g

2．Weight: 1000g±10g (including the weight of the loading plate)

3．Test board: 75 mm(L)×50 mm(W)×1.5 mm(D)

4．Timing range: 0～9999 minutes

5．stations: pieces

6．Dimensions: 550 mm(L)×250 mm(W)×670mm(H)

7．Net weight: 20Kg
