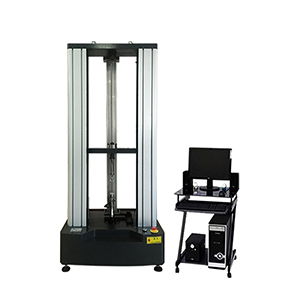

【Scope of application】

Used for tensile strength testing of various new building waterproof materials (including new waterproof coiled materials, cloth, paper, waterproof coatings, waterproof sealing materials, etc.) It can also be used to test the tensile properties of other non-metallic materials.

【Standards compliant】

GB 328. 9-2007-T Test method for building waterproofing membrane Part 9: Stretching of polymer waterproofing membrane

【Instrument features】

1. Force measurement accuracy: Use domestic authoritative load cell, tested and recommended by national authoritative department.

2. Controller (microprocessor) features: PHILIPS company 32-bit microprocessor control, super anti-interference ability, extremely fast, guaranteed sampling rate ≥1000 times/sec; and can process curves and reports at the same time.

3. Display features: Display the curve dynamic tracking (monitoring) test process, the curve coordinates are automatically zoomed (without the intervention of the tester), the report and the curve are tracked and displayed at the same time.

4. Operating features: Menu-guided operation mode, fool-type operation characteristics, simple and easy to learn, stable performance.

5. Large data capacity: Up to 500 consecutive tests.

6. Equipped with JiGao_Test expert test software to provide you with a test system that can quickly set up the test and use it very easily.

【technical parameter】

1. Test method: CRE test principle is measured, the whole process is controlled by a high-speed processor, and every moment of change (curve dynamic monitoring), breaking strength and breaking elongation (elongation) are recorded. , Time, frequency, etc.

2. Force measuring system: force sensor.

3. Test method: microcomputer control

4. Quantity process: 500N / 1000 N / 2500N / 5000N / 10000N (optional)

5. Force measuring accuracy: ≤±0.02%F.S

6. Adjustment accuracy of clamping distance: ±0.1mm

7. Stretching speed: 0.001-1000mm/min digital speed regulation, error ≤±2% (arbitrarily set)

8. Gantry width: 420mm

9. Effective stroke: 1000mm

10. Elongation resolution: 0.001mm

11. Sampling frequency: 2500 times/sec

12. Holder: Waterproof coiled material fixture (optional for large deformation extensometer)

13. Maximum cumulative test times (maximum data capacity of continuous test): 5000 times (can be grouped arbitrarily)

14. Print: output print results in various forms

15. Power supply: AC220V±10％50Hz

16. Dimensions: 820×650×1750mm (L×W×H)

17. Weight: about 180 Kg
