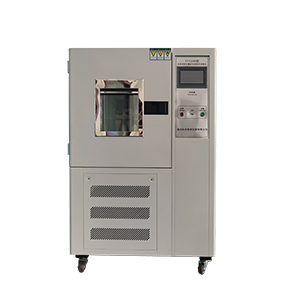

YT1204A type automatic waterproof coiled material low temperature bending tester
香港正版资料全年资料12323
香港正版资料全年资料12323

Scope of application

This machine is suitable for low-temperature bending test of waterproof coiled material or bending test of waterproof material. It adopts an integrated design. After the sample reaches the specified conditions, the instrument automatically presses down the sample within one second. After maintaining for one second, it automatically Turn on the bending device, the entire test process is automatically controlled, effectively preventing accidents such as artificial frostbite.

Standards compliant

GB 18173.1-2012, GB/T 328.15-2007, etc.

technical parameter

1. Temperature range: 0-40(adjustable)

2. Material of inner and outer box: stainless steel #304

3. Bending clamp sample size: 50X100 or 100X50 or 100X25mm

4. Test time: 0-9999s setting, LCD display

5. Protection device: thermal shutdown protection, leakage protection shutdown, over-temperature protection, overload protection and other functions

6. Control accuracy: ±0.3

7. Distribution uniformity: ±0.1

8. Refrigerant: R404 environmentally friendly refrigerant

9. Compressor: original fully enclosed type

10. Compressor start delay: 5min

11. Thermal insulation materials: rigid foam and glass wool

12. Window: (210×35×270)mm, two-cell vacuum layer

13. Power supply: AC220V 50HZ

14. Studio size: 600×600×550mm

15. Dimensions: 1100×1050×1600mm

16. Weight: 200kg
