【product description】

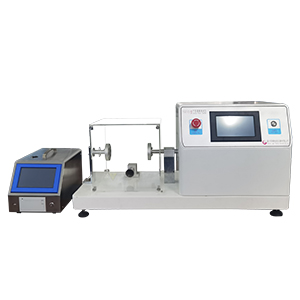

For the experiment of dry flocculation of non-woven fabrics and other textile materials used in "One-time and reusable surgical drapes, surgical gowns and clean clothes for patients, medical staff, and instruments", this machine is equipped with a double-operated class 100 The clean level ultra-clean workbench system is equipped with an adjustable wind speed system to adjust the air volume arbitrarily.

【technical parameter】

1. Disc diameter: Φ82.8㎜

2. Reciprocating movement: 60 times/min

3. Rotation angle: 180 degrees/time (alternating clockwise and counterclockwise)

4. Starting distance: 188±2mm (between two discs)

5. Moving plate stroke: 120±2㎜ (straight line)

6. Detection range: Class 100～300,000 (GMP A, B,, D)

7. Eight particle size channels: 0.3, 0.5, 0.7, 1.0, 3.0, 5.0, 10.0, 25.0 (μm)

8. Sampling period: 1 second---59 minutes 59 seconds optional

9. Printing function: built-in printer, which can print counting results

10. Allowable sampling concentration: 35,000/L

11. Cleanliness level: Class 100@≥0.5um

12. Number of colonies: ≤0.5/dish. Hour (φ90mm culture plate)

13. Average wind speed: 0.3-0.6m/s (adjustable)

14. Vibration half peak value: ≤3um

15. Illumination: ≥300Lx

16. Specification size: working area 1130×650×720 (mm) outline 1300×825×1760 (mm)

17. Weight: 450 Kg

18. Power supply: AC220V/50Hz 0.8kw
