【Scope of application】

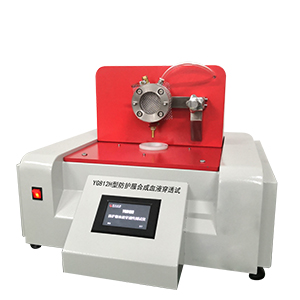

Used to test the resistance of medical protective clothing to penetration of synthetic blood under specified test conditions.

【Guideline】

GB 19082-2009 Technical requirements for medical disposable protective clothing 5.4.3 Resistance to penetration of synthetic blood

【technical parameter】

1. Test conditions: temperature is (20±2) ℃, relative humidity is (30-80)%

2. Pressurization pressure: the pressure gauge shows the pressurization pressure, the pressurization pressure is adjustable, and the pressure adjustment rate is less than 3.5Kpa/s

3. Fixed clamp: a clamp that can produce 13.6Nm torque

4. Test pressure: 0Kpa, 13.8Kpa

5. Sample size: 75mm*75mm

6. Power supply: AC220V 50Hz 0.2KW

7. Dimensions: 550mm*450mm*750mm
