【Scope of application】

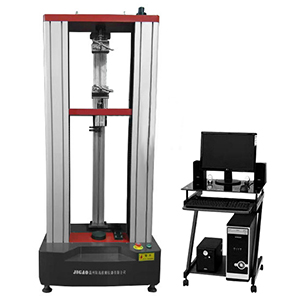

The fabric strength tester/electronic fabric strength tester is used to test the mechanical properties of various materials such as stretching, tearing, bursting, constant elongation, constant load, elasticity, suture slip, peeling, etc., and is widely used in rubber and plastics. Force value, elongation and deformation test for tensile, compression, bending, bonding, peeling, tearing, bursting, creep and other tests of, leather, metal, wire, paper, packaging, building materials, electrical and geotechnical materials .

【Standards compliant】

GB/T3923.1.2; GB/T39172.3; FZ/T01030; ISO13934.1.2; DIN53838; DIN53861.2; ISO13935.1.2; ISO4606; ASTMD2261; NFG07-119, 120; IIS L1093ASTM D5035; Bs2576; DIN53835.13.14, ASTM D5034, DIN53868; NFG07-001;

【technical parameter】

1. Test method: Measured according to the national preferred constant velocity elongation (CRE) test principle, the whole process is controlled by a high-speed processor, and every moment of change (curve dynamic monitoring), breaking strength and breaking elongation are recorded ( Elongation), time, frequency, etc.

2. Force measuring system: The high-precision force measuring sensor imported from the United States is adopted.

3. Test method: single yarn, fabric stretching, bursting, peeling, tongue tearing, trapezoidal tearing, constant elongation, constant load, underarm seams, suture slippage (optional)

4. Measuring range: 500N / 1000 N / 2500N / 5000N / 10000N 20000N (optional)

5. Force measuring accuracy: ≤±0.02%F.S

6. Adjustment accuracy of clamping distance: ±0.1mm

7. Stretching speed: 0.001-1000mm/min digital speed regulation, error ≤±2% (arbitrarily set)

8. Gantry width: 430mm

9. Effective stroke: 1000mm

10. Elongation resolution: 0.001mm

11. Sampling frequency: 2500 times/sec

12. Effective width of holder: Optional according to needs (standard configuration: 110mm)

13. Maximum cumulative test times (maximum data capacity of continuous test): 5000 times (can be grouped arbitrarily)

14. Print: output print results in various forms

15. Power supply: AC220V±10％50Hz

16. Dimensions: 820×650×1750mm (L×W×H)

17. Weight: about 180 Kg
