【Scope of application】

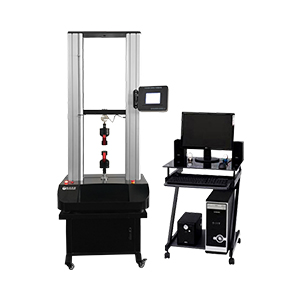

YG026H electronic fabric strength tester is used to test the mechanical properties of various textiles such as stretching, tearing, bursting, constant elongation, constant load, elasticity, suture slip, peeling, etc., and is widely used in rubber, plastic, and leather. , Metal, wire, paper, packaging, building materials, petrochemical, electrical, geotechnical materials, tensile, compression, bending, bonding, peeling, tearing, bursting, creep and other tests of force, elongation, deformation test .

【Related standards】

GB/T3923.1/2 GB/T13772.1/2/3 GB8687 FZ/T20019 FZ/T70006 FZ/T01085 FZ/T01030 FZ/T70007 ISO13934.1/2 ISO13935.1/2 ISO4606 ISO9073.3/4 ASTM D5034 ASTM D5035 ASTM D2261 ASTM D434 ASTM D4964 ASTM D5587 ASTM D3936 JIS L1093 BS DIN etc.

【technical parameter】

1. Test method: Measured according to the standard recommended constant velocity elongation (CRE) test principle, the whole process is controlled by a high-speed processor, and every moment of change (curve dynamic monitoring), and breaking strength and breaking elongation are recorded ( Elongation), time, frequency, etc.

2. Force measuring system: High-precision force measuring sensor is adopted.

3. Test method: single yarn, fabric stretching, bursting, peeling, tongue tearing, trapezoidal tearing, constant elongation, constant load, underarm seams, suture slippage (optional)

4. Measuring range: 500N / 1000 N / 2500N / 5000N / 10000N (optional)

5. Force measuring accuracy: ≤±0.02%F.S

6. Adjustment accuracy of clamping distance: ±0.1mm

7. Stretching speed: 0.001-500mm/min digital speed regulation, error ≤±2% (arbitrarily set) 0.001-500mm/min (optional)

8. Gantry width: 430mm

9. Effective stroke: 1000mm

10. Elongation resolution: 0.001mm

11. Sampling frequency: 2500 times/sec

12. Effective width of holder: Optional according to needs (standard configuration: 110mm)

13. Maximum cumulative test times (maximum data capacity of continuous test): 5000 times (can be grouped arbitrarily)

14. Print: output print results in various forms

15. Power supply: AC220V±10％50Hz

16. Dimensions: 820×650×1700mm (L×W×H)

17. Weight: about 180 Kg
