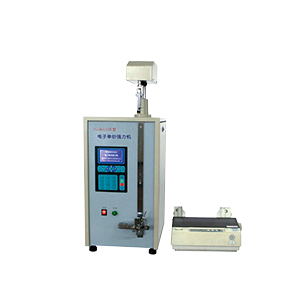

YG021DX Electronic Single Yarn Strength Tester | ||||||||||||
【product description】 The strength of YG021DX electronic single yarn machine can be used to test the tensile breaking strength and breaking elongation of cotton, wool, hemp, silk, chemical fiber and other fiber pure and blended yarns. 【Related standards】 ISO2062-1993(E) "Textiles-Packed yarns-Determination of breaking strength and breaking elongation of single yarn GB/T3916-97 "Determination of breaking strength and breaking elongation of single yarn" 【Test Mode】 Constant velocity elongation (CRE) type (take the specified sample, use the instrument, stretch at the specified speed until it breaks, and record the breaking strength and breaking elongation at the same time) 【Basic technical specifications】 1、Power supply: voltage AC 220V±10% 50Hz 2、Motor: stepper motor 3、Printer: 80-column narrow-line 24-pin printer 4、Data processing capacity: ≤512 trials 5、Apparatus dimensions: 370(L)×530(W)×90(H)mm 6、Force measurement accuracy: ≤±0.2%F.S 7、Sampling length: 100mm, 250mm, 500mm (optional for three levels) 8、Stretching speed: 0-500mm/min stepless speed regulation, digital display speed, error ≤±1%. 9、Force measuring range and minimum graduation value:
10、Dimensions 370×530×930mm (L×W×H) 11、Weight 60Kg 12、Power supply Ac220V, 50Hz |
