【Scope of application】

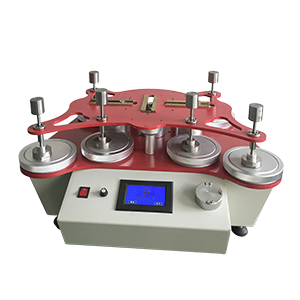

Martindale Abrasion Tester (Fully Automatic Fabric Flat Grinding Tester) is used to test the abrasion resistance, abrasion, and appearance changes (pilling) of textiles and membrane materials.

【Standards compliant】

GB/T 21196.1-2007 Textiles Determination of the abrasion resistance of fabrics by Martindale method Part 1

GB/T 21196.2-2007 Textiles Determination of the abrasion resistance of fabrics by Martindale method Part 2

GB/T 21196.3-2007 Textiles Determination of the abrasion resistance of fabrics by Martindale method Part 3

GB/T 21196.4-2007 Textiles Determination of the abrasion resistance of fabrics by Martindale method Part 4

GB/T 4802.2-1997 Textiles, Fabric Pilling Test Martindale Method

B 8690-88 Test method for abrasion resistance of wool fabric Martindale method

ISO 12945-2:2002 Textiles-Determination of surface pilling performance of fabrics Part 2 Martindale method

GB/T 13775-92 Abrasion resistance test of cotton, linen and spun silk woven fabric Martindale method

ASTM D4966-1988 Fabric Abrasion Resistance Test Martindale Abrasion Tester

ASTM D4970-2002 Fabric Anti-pilling Test Method Martindale Tester

JIS 1096 E Law Martindale Method

【technical parameter】

1. Number of workers: 6

2. Counting range: 0～999999 times

3. Maximum stroke: Horizontal: 60±0.5mm Longitudinal: 24±0.5mm

4. The quality of pressurized material:

A. Holder: 198±2g

B. Clothing sample weight: 395±2g

c. Weight of furniture decoration sample: 594±2g

d. Stainless steel butterfly plate: 260±1g

5. Effective friction diameter of grinding block:

Type A 200g (1.96N) friction head (9KPa) 28.8 -0.084mm

Type B 155g (1.52N) friction head (12KPa) ￠90 -0.10mm

6. The relative speed of the gripper and the grinding table: 50±2r/min, 47±2r/min

7. The weight of sample loading hammer: 2385g

8. Dimensions: 885×600×410mm

9. Electricity source: Ac220V 50Hz 500W

10. Weight: 150kg
