【Scope of Application】

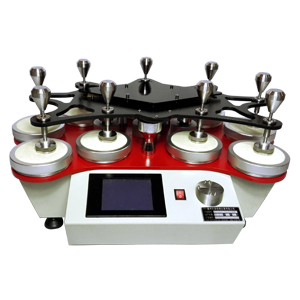

Martindale Abrasion Tester is suitable for testing the abrasion resistance and pilling degree of knitted fabrics, woolen fabrics, artificial leather, synthetic leather, etc. under pressure.

【Standards compliant】

GB/T4802.1-1997, ASTM D4970, ISO12945-2 and other fabric pilling degree test;

GB/T13775, ASTM D4966, ISO12947 and other fabric wear resistance test.

【Technical parameters and configuration】

★Number of jobs: 9 or 8

★Count display:

A. Estimated count: 0～999999 times

B. Cumulative count: 0～999999 times

★Stroke: 24±0.5mm, 60.5±0.5mm

★Pressed material quality:

A. Holder: 200±1g

B. Sample weight: Clothing material Sample weight: 395±2g

Weight of furniture decoration sample: 594±2g

C. Stainless steel disc: 260±1g

★Effective friction diameter of grinding block:

Type A 200g (1.96N) friction head 28.8 -0.084mm

Type B 155g (1.52N) friction head 90 -0.10mm

★Relative speed of gripper and grinding table: 50-2r/min

★Quality of sample loading hammer: 2385±10g

★Dimensions: 885×600×410mm (L×W×H)

★Weight: 150kg

★Power supply: Ac220V 50Hz
