【Scope of application】

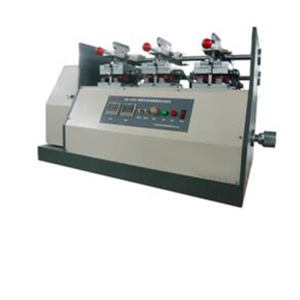

This machine is mainly used for the determination of the resistance to shearing, flexing and friction of rubber or plastic coated fabrics. This instrument provides the test methods without pressure foot and with pressure foot specified in the standard, and the operation is simple and convenient.

【Related standards】

ISO 5981-2007

【technical parameter】

1. Movement stroke: 0～50mm (adjustable)

2. Movement frequency: 2.4～3.0Hz (adjustable)

3. Length and width of test piece: 110X50mm or 100X50mm

4. Counter counting range: 0～9999,9999 times

5. Instrument size: 830mm×495mm×542mm(LxWxH)

6. Electricity source: AC220V 50Hz
