【Scope of application】

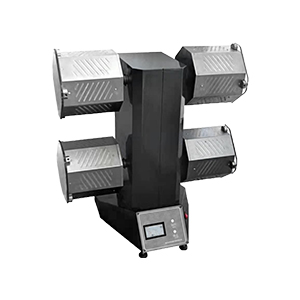

This instrument uses rapid detection to simulate the condition of fabric raising demand within a certain period of time under normal wearing conditions.

This tester is suitable for detecting the pilling phenomenon caused by friction on the surface of the fabric without pressure, and is suitable for woven and knitted fabrics.

【Standards compliant】

Eight-side test box (BS8479)

【technical parameter】

1. Sample: 125mmx125mm, four/station

2. Test speed: 60±2r/min

3. Specimen casing: outer diameter 31.5±1mm, thickness 3.2±0.5mm, length 140±1mm

4. Sample casing weight: 52.25±1g

5. Thickness of cork liner: 3.2mm

6. Test stations: 4 stations

7. Internal dimensions of the test box: 235mm before the liner

8. Counting: 0~999999 times, can be set

9. Control method: touch screen control

10. Volume (WxDxH): 76x45x86cm

11. Weight (Kg): ≈65Kg

12. Power supply: 1∮ AC 220V 50Hz 3A
