【Scope of application】

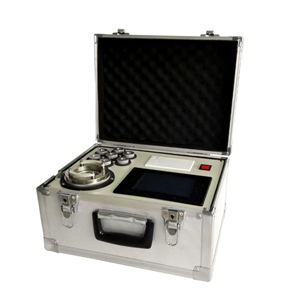

JG461S portable air permeability meter is used to test the air permeability of various materials such as fabrics, non-woven fabrics, mesh cloth, paper, papermaking felt, glass fiber, etc. It is especially suitable for the mobile testing needs of the papermaking felt industry; this machine can be used for The on-site testing of the production line of the production enterprise can also be used for various laboratory tests and the national quality inspection agency to carry to the enterprise on-site sampling test.

【Standards compliant】

GB/T 5453-1997 Textiles Determination of fabric breathability

ISO9237-1995 Textiles Determination of Fabric Air Permeability

BS EN ISO9237-1995 Textiles Determination of air permeability of fiber fabrics

DIN EN ISO9237-1995 Textiles Determination of air permeability of fiber fabrics

EN ISO9237-1995 Textiles Determination of air permeability of fiber fabrics

ASTM D737-2004 (2012) Test Method for Air Permeability of Textiles

JIS L1096-8.26A:2010 General Textile Test Method

ISO9073-15: 2007 Textiles and Nonwovens Test Methods Part 15 Determination of Air Permeability

BS EN ISO9073-15: 2008 Textiles Nonwovens Test Methods Part 15 Determination of Air Permeability

DIN EN ISO9073-15: 2008 Textiles Nonwovens Test Methods Part 15 Determination of Air Permeability

EN ISO9073-15: 2008 Textiles and Nonwovens Test Methods Part 15 Determination of Air Permeability

BS 3424-16-1995 Coated fabric testing. Part 16 Determination of air permeability

GB/T 13764-1992 Test method for permeability of geotextile

GB/T 22819-2008 Determination of Air Permeability of Highly Air Permeable Paper

QB/T l461-1992 Determination of air permeability of highly air permeable paper

JIS K6400-7-2004 Determination of the physical properties of flexible porous polymer materials Part 7 Air permeability

AFNOR G07-111, BS 5636, DIN 53887 and other air permeability performance standards

【technical parameter】

1. Pressure force process: 1～4000Pa self-set pressure drop

2. Measurable air permeability: 0.2～12000mm/s

3. Measurement error: ≤±2%

4. Measurement unit: mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min

5. Suction volume adjustment: data feedback dynamic adjustment

6. Test area: 20cm2

7. Spray mouth: 7 in total

8. Data processing capacity: ≤1000 tests

9. Data output: high-definition touch screen display; micro printer

10. Electricity source: AC 220V±10V 50Hz

11. Power consumption: 300W

12. Weight: 8.5Kg

13. External shape: 360×280×220mm (L×W×H)
