【product description】

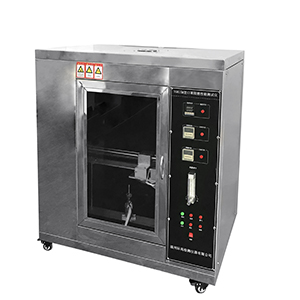

The combustion test device for automotive interior materials is designed in strict accordance with the technical requirements of the national standard GB8410-2006 "Combustion characteristics of automotive interior materials", and it also complies with the simulated combustion performance specified by the United States Automotive Safety Technical Regulations FMVSS 571.302 and other standards. Safety test items, the relevant requirements of German standard DIN7520 "Combustion characteristics of automotive interior materials" and TL1010 "Combustion characteristics of automotive interior materials", used to identify the horizontal combustion characteristics of interior materials for cars, multi-purpose passenger cars, trucks and passenger cars .

【Standards compliant】

GB8410-2006 (Excluding the requirements for fume hoods in the standard)

The simulated combustion performance safety test items specified by FMVSS 571.302 and other standards

DIN7520 "Combustion characteristics of automotive interior materials"

Combustion characteristics of TL1010 automotive interior materials

Other standards: GM6090M, DIN75200, GM9070P, FMVSS 302, JIS D 1201, JASO M403, ISO 3795, ASTM D5132, QB/T 2729-2005

【technical parameter】

Ambient temperature: -5℃-30 ℃

Relative humidity: ≤ 85%

Power supply voltage: 220V+ 10%, 50HZ, power: 100W

Gas source: liquefied petroleum gas

Stopwatch accuracy is not less than 0.5s

Bunsen burner (ie burner) applies flame to the sample for 15s

Bunsen tube inner diameter 9.5mm+0.1mmm, length about 100mm

Test inclination angle: Bunsen burner 90° burns vertically against a horizontally placed sample

Flame height: adjustable from 20mm± 2mm to 100mm±2mm (generally adjusted to 38mm)

Flame application time: 0-999.9s±0.1s adjustable (generally choose 15s)

Continue burning time: 0-999.9s±0.1s, observe that the flame reaches the first marking line manually start, manual pause

Combustion gas: liquefied petroleum gas or coal gas

Temperature range: 0～200℃ (display the internal temperature of the studio under the test state)

Combustion test area volume: >0.75 cubic, length * section * height about 1050mm×640mm×1300mm, black background, background illumination ≤20Lux

Sample size: length 356mm, width 100mm, thickness ≤ 13mm

Equipment dimensions: length * section * height 1310*650*1560mm (including feet)
