【Scope of application】

Suitable for testing the burning performance of fluff or fur fabrics

【Standards compliant】

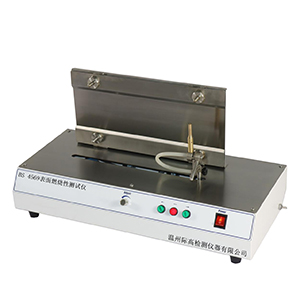

This instrument is manufactured according to BS 4569

【technical parameter】

1. Fixture length 400mm

2. Burner moving speed 150±15mm/s

3. Burner moving distance ≥300mm

4. Can test the fabric plush height Max.: 70mm

5. The distance between the two clips is 100mm

6. Specimen specification length 200mm, width ≥130mm

7. Number of samples 2 pieces

8. The distance between the burner and the sample surface is 5mm

9. The distance from the center of the nozzle to the lower clip is 15mm

10. Combustion gas Butane gas

11. Volume (WxDxH) 62x27x32cm

12. Weight (Kg) ≈18Kg

13. Power supply 1∮ AC 220V 3A
