【Scope of application】

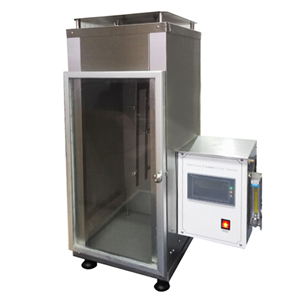

This instrument is mainly used to test the flame retardant properties of fabrics such as children’s pajamas and curtains. The sample is installed in the sample holder and hung vertically in the test instrument. After a certain time is burned under the sample with a flame of the required height, the continuation of the sample is recorded. Burning, smoldering time and damage length are used to evaluate its flame retardant performance.

【Standards compliant】

CFR1615/1616

【technical parameter】

1. Flame height: 40±2mm (adjustable), precision flow valve, adjust flame height

2. Ignition time: 0-99.9 seconds, can be set freely

3. Burning time: 0-999.9 seconds

4. Smoldering time: 0-999.9 seconds

5. PLC control, touch screen display and operation

6. Ignition action: after pressing start, it will automatically ignite, and the flame will go out after the set time is reached and return

7. Burner angle: 25 degrees (other angles can be customized)

8. U-shaped fixture size: 356x51mm

9. Distance from burner to sample: 17mm (adjustable)

10. Power supply: 220V, 50Hz, 30W

11.Size: about 58x38x86cm
