【Scope of application】

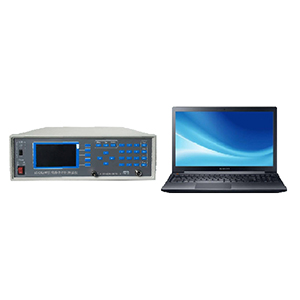

This machine is used to test the point-to-point resistivity test of anti-static work clothes and anti-static fabrics, and meets different test standards such as national standards and European standards. It is equipped with JIGAOTEST V1.6 special test software, which can realize online operation, according to standard regulations, automatically complete sample test, and perform data processing and report editing of test results, print test reports, etc.

【Related standards】

GB/T 22042-2008 Clothing Antistatic Performance Test Method for Surface Resistivity

GB T 22043-2008 Antistatic performance of clothing Test method for resistance (vertical resistance) of passing materials

GB 12014-2009 anti-static clothing

GB/T 12703.4-2010 Evaluation of electrostatic properties of textiles Part 4: Resistivity

EN 1149-1-2006 Protective clothing Electrostatic performance Part 1 Surface resistance test methods and requirements

EN 1149-2-1997 Protective clothing Electrostatic performance Part 2 Test method of vertical resistance through material resistance

AATCC 76 Fabric surface resistance

ANSI /ESD STM2.1 Anti-static clothing resistance test method-American Standard

【technical parameter】

1. Resistance measurement range: 104Ω～1016Ω.

2. Liquid crystal display: Surface resistance, temperature, current, voltage, test time, test sample data can be input; the unit can be switched (mm, cm, m)

3. Built-in test voltage: 0-1000V can be set arbitrarily

4. Basic accuracy: <1G±1%;>=1G±3%;>=1T±10% The accurate deviation value is different under different range states

5. Operating environment: Temperature: 0℃～40℃, relative humidity <80%

6. Test voltage inside the machine: 10/50/100/250/500/1000V arbitrarily set

7. Power supply form: AC 220V, 50HZ, power consumption is about 5W

8. Measurement mode: manual/auto range. With PC test software (optional), USB communication interface, the software interface synchronously displays, analyzes, saves and prints data!

9. Purchase of commonly used electrode (fixture) devices:

Type A: Heavy hammer electrode (Point-to-point resistance test on the surface of the fabric)

Type B: Ring-shaped combined electrode (fabric surface resistivity test, fabric vertical resistance test)

10. External dimensions of the host: 330mm*340mm*120mm
