【product description】

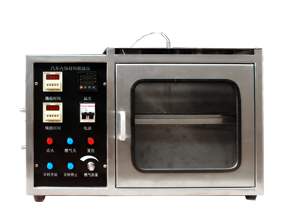

The combustion tester for automotive interior materials mainly conducts qualitative assessment of the flammability of automotive interior materials. It is suitable for various types of automotive interior material manufacturers and the research, production and quality inspection departments of their material components, and also suitable for insulation materials, engineering plastics or other solid combustible materials industries.

【Standards compliant】

GB8410-2006 (Excluding the requirements for fume hoods in the standard)

The simulated combustion performance safety test items specified by FMVSS 571.302 and other standards

DIN7520 "Combustion characteristics of automotive interior materials"

Combustion characteristics of TL1010 automotive interior materials

Compliant with standards: GM6090M, DIN75200, GM9070P, FMVSS 302, JIS D 1201, JASO M403, ISO 3795, ASTM D5132, QB/T 2729-2005

【technical parameter】

1. Ambient temperature: -5℃-30 ℃

2. Relative humidity: ≤ 85%

3. Temperature range: 0～200℃ (display the internal temperature of the studio under the test state)

4. Gas source: liquefied petroleum gas

5. Combustion gas: liquefied petroleum gas or coal gas

6. The stopwatch accuracy is not less than 0.5s

7. Bunsen burner (ie burner) applies flame to the sample for 15s

8. Bunsen tube inner diameter 9.5mm+0.1mmm, length about 100mm

9. Test inclination angle: Bunsen burner 90° burns vertically against a horizontally placed sample

10. Flame height: adjustable from 20mm±2mm to 100mm±2mm (generally adjusted to 38mm)

11. Flame application time: 0-999.9s±0.1s adjustable (generally selected as 15s)

12. Continue burning time: 0-999.9s±0.1s, observe that the flame reaches the first marking line manually start, manual pause

13. The external dimensions of the instrument: 590mm*210mm*460mm

14. Power supply voltage: 220V+ 10%, 50HZ, power: 100W
