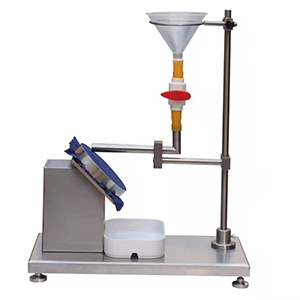

【product description】

It is used to test the water absorption performance of various woven towel products using textile fibers as raw materials.

【Related standards】

GB./T22799-2009 "Test Method for Water Absorption of Towel Products"

ASTM/D4772 Standard Test Method for Surface Water Absorption of Towel Fabric (Water Flow Test Method)

【technical parameter】

1. Glass funnel: 250ml

2. Flow cylinder: 100ml

3. Specimen angle: 60° to the horizontal

4. Specimen holder diameter: medium 155mm

5. The distance between the water outlet end of the water pipe and the sample surface: 2mm- 10mm

6. The inner side of the water pipe from the outer ring of the clamp ring: 28mm- 32mm

7. Water tray size: 250X 190X 30mm (LX wXH)

8. Overall dimensions of the sample stand: 180*140*200mm

9. Instrument weight: 12KG
