【product description】

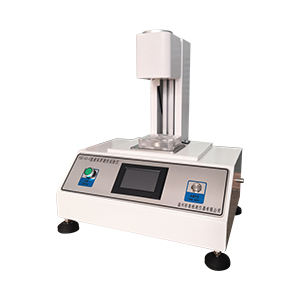

This instrument is suitable for the test of liquid penetration of thin non-woven fabrics for sanitary use, such as women's sanitary napkins and diapers covering materials.

【Related standards】

GB/T 24218.8 Test method for nonwoven fabrics of textiles Part 8: Determination of liquid penetration time (simulated urine);

GB/T 24218.13 Testing methods for textiles and nonwovens Part 13: Determination of multiple penetration time of liquids;

GB/T 24218.14 Testing methods for textiles and nonwovens Part 14: Determination of moisture content of covering materials.

FZ/T60017-1993 "Test Method for Liquid Penetration of Thin Nonwoven Fabrics for Sanitary Use"

【technical parameter】

1. Burette capacity: 50ml

2. Flow rate of funnel with solenoid valve: 25ml in (3.5±0.25) s

3. The distance between the tip of the funnel and the sample: adjustable

4. Substrate material: transparent plexiglass

5. Penetration plate size: 100mm×100mm×25mm

6. Sample size: 125mm×125mm

7. Timer accuracy: 0.01s

8. Total weight of penetrating plate: 500g

9. Power supply: AC220V±10% Power: 50W

10. Volume: 530mm×250mm×650mm

11. Weight: 15Kg
