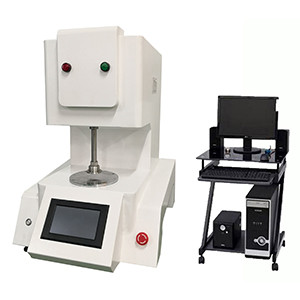

YG141PC type automatic fabric thickness meter

【Scope of application】

The automatic fabric thickness meter is used to measure the thickness of various fabrics, non-woven fabrics, geotextiles, plastics, sponges and related composite materials.

【Related standards】

GB/T3820, FZ/T01003, ISO5084/9073/9863, ASTM D1777, JTG E50, ISO 9863, GB/T 13761, etc.

【technical parameter】

1. Measuring thickness range: 0～25mm (other thickness ranges can be customized)

2. Resolution: 0.01 or 0.001mm optional

3. Presser foot area and pressure configuration table:

Foot area	Pressurized pressure	Test category	Configuration selection
100 ±1 mm² 10000mm² ±100 mm² 2000mm² ±20 mm²(Recommended area)	1±0.01KPa 0.5±0.01KPa	Ordinary textile leather	Standard one
	0.1±0.001KPa	Plush	Standard one
2500mm²	2±0.01KPa 20±0.1KPa 200±0.1KPa	Geotextile Non-woven	Option two
20000 ±100 mm² 40000±200mm²	0.02±0.0005KPa	Fluffy	Option three
1963 mm²	0.1 KPa---10 KPa	Automotive interior	Option four

4. Sensor range: 50N, 500N (optional)

5. Accuracy: ≤±0.02%F.S

6. Weighting time: 10s 30s or freely set

7. Measurement method: arbitrary selection of single-point measurement and multi-point measurement

8. Data output: online control, print output, edit and save

9. Power supply voltage: AC220V±10% Power: 100W

10. Instrument weight: about 45kg

11. Dimensions: 360mm*500mm*700mm
