【Scope of application】

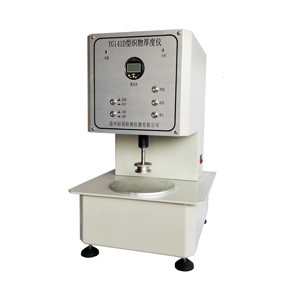

YG141D digital fabric thickness meter is used to measure the thickness of various woven fabrics, knitted fabrics and uniform thin materials.

【Related standards】

GB/T3820, FZ/T01003, ISO5084/9073/9863, ASTM D1777, etc.

【technical parameter】

1. Measuring thickness range and resolution:

Thickness measurement range 0-25mm 0-50mm

Resolution 0.01mm 0.001mm 0.01mm 0.001mm

2. Presser foot area: 100, 2000, 2500, 10000 (mm2)

3. Diameter of presser foot: 11.28, 50.46, 56.42, 112.84 (mm)

4. Compression weight: 25cN, 50cN*2, 100cN*2, 200cN

5. Lowering speed of presser foot: 1.72 (mm/s)

6. Test method: single, continuous test, jog test (lift the pressure plate)

7. Alarm function: alarm music will be played at the end of the test.

8. Measuring speed:

When the weighting time is set to 10s, about 2.1 (times/min)

When the weighting time is set to 30s, about 1.2 (times/min)

9. Power supply: Ac220V±10% 50Hz

10. External dimensions of the instrument: 600 (L) × 400 (W) × 450 (H) mm

11. Instrument weight: about 30kg

Remarks: This machine YG141D thickness gauge, the latest upgraded version of Wenzhou Jigao 2014 can be connected to a computer, display test data in two directions, and print test results. For details, please consult the sales representative 400-689-6780
