【Scope of application】

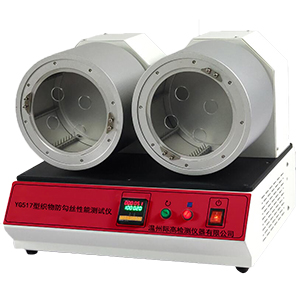

This tester is suitable for testing the anti-snagging performance of knitted fabrics.

【Related standards】

ASTM D5362, JIS L1058, M&S P21A

【technical parameter】

Number of test stations: 2 stations

Test speed: 20±3 r/min

Test tube: inner diameter Φ200mm, depth 145mm

Bead pillow: weight 450±10g/piece

Nail rod: outer diameter 8mm, length 127mm, 9 nails/nail rod

Nail: protruding length 10mm, spacing 12mm, angle with vertical direction: 30±5°

Sample size: 215x115mm

Counting: 0-9999 times can be set

Dimensions: 47*38*38cm

Weight: 40Kg

Power supply: AC 220V 50Hz 3A
