【Scope of application】

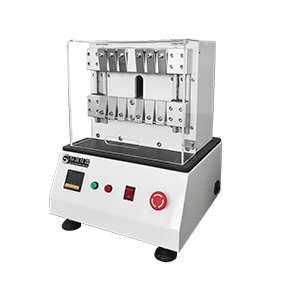

It is used to test the resistance to repeated flexing damage of coated fabrics. This machine is the De Mattia test method.

【Related standards】

GB/T 12586 (Method A De Mattia), ISO 7854, BS 3424:Part9

【technical parameter】

1. Fixture: 6 groups

2. Rotation speed: 5.0Hz±0.2Hz (300±12r/min)

3. Fixture width: outer diameter 22mm

4. Test track: linear motion in the vertical direction

5. Test stroke: 57mm+0.5mm

6. Fixture spacing: Max.70mm±1mm, Min.13mm±0.5mm

7. Sample size: (37.5±1)mmx125mm

8. Number of samples: 6 pieces, 3 pieces each in the warp and weft directions

9. Volume (WxDxH): 40x36x55cm

10. Weight (approximately): ≈30Kg

11. Power supply: 1 AC 220V 50Hz 3A
