【Scope of application】

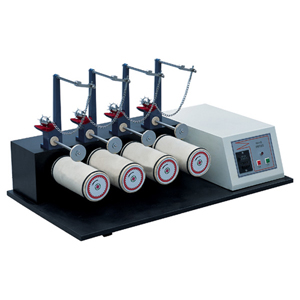

The mace snagging tester is used to test the anti-snagging performance of knitted fabrics and other easy-snagging fabrics.

【Related standards】

GB11047 ASTM D3939

【technical parameter】

1. Transmission mode: motor drive

2. Rotating speed of drum: 60±2r/min

3. Setting range of revolutions: 0～99999 revolutions

4. Drum diameter: Φ82mm; width 210mm

5. Mace weight: 160±10g

6. Number of needles for nail hammer planting: 11

7. The exposed length of the pin nail: 10mm; the tip radius R0.13mm

8. Felt thickness: 3～3.2mm; width 165mm

9. Working width of guide rod: 125mm

10. The distance between the hammer and the guide rod (the length of the chain between the hammer and the guide rod): 45mm

11. Number of stations: 4 stations

12. Power source: AC220V, 50Hz
