【Scope of application】

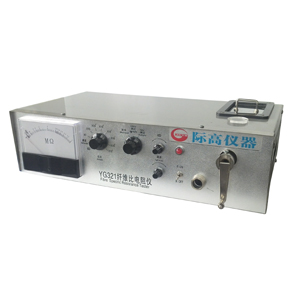

The fiber specific resistance instrument can be used to measure the resistance value with a certain density under a certain geometric shape, and then convert it into the specific resistance of the fiber according to the filling degree of the fiber. To

【Related standards】

GB/T 14342-1993 "Synthetic short fiber specific resistance test method"

【technical parameter】

1. Measuring range of fiber specific resistance: 106 Ω～1013 Ω (10 to the 13th power of 10 Ω)

2. 15g sample for each test

3. The measuring voltage is 50V, 100V, and the deviation is less than ±5%

4. Working environment temperature: 20℃±2℃, humidity: 65%±10%RH

5. The zero drift of the instrument is less than ±4% between 1--8 hours at a stable working voltage and no signal input

6. The basic error of the instrument to the standard resistance measurement: ≤±20%

7. Power supply: AC220V

8. Dimensions: 460×260×130mm(L×W×H)
