【Scope of application】

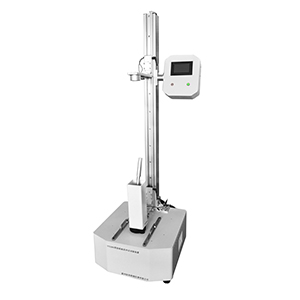

The anti-glare board impact test device meets the requirements of the national standard GB/T 24718-2009 "Anti-glare board". The anti-glare board impact test device is specially designed and produced for the production, quality supervision, engineering construction and supervision units to measure the impact resistance of the anti-glare board. The test method of this machine is to adjust the steel ball of the specified weight at a certain height, make it fall freely and hit the sample, and judge the quality according to the degree of damage. It is suitable for the fastness of plastics, plastic products, ceramics, glass fiber, tempered glass and other materials and test coatings.

【Standards compliant】

GB/T 24718- 5.5.3.3 Impact resistance test part

【working principle】

Place the sample on the sample holder, and use a steel ball weighing 1Kg to freely fall from a distance of 1m from the sample to impact the sample. After the sample is impacted, the sensor detects the position of the steel ball, and the electromagnetic automatically captures it to prevent the steel ball from continuing. Raising and falling back to the specimen results in secondary contact with the specimen.

【Instrument characteristics】

The sensor automatically detects the position of the steel ball, and the electromagnetic automatically captures it.

This machine has the functions of electromagnetic hammer grasping and anti-secondary impact. It is safe and reliable in operation. The whole machine is small in height, easy to install and easy to operate.

【technical parameter】

1. Steel ball quality: 1000 ± 10 grams

2. Steel ball drop: 1 meter

3. Falling ball control method: electromagnetic control has the function of preventing secondary impact

4. Way to stop the steel ball from falling back: electromagnetic automatic capture

5. Steel ball quality error: ±5g

6. Equipped with a silent air pump

7. Power supply: AC220V, 50HZ

8. Volume: 40×40×210cm

9. Weight: 50kg
